Description

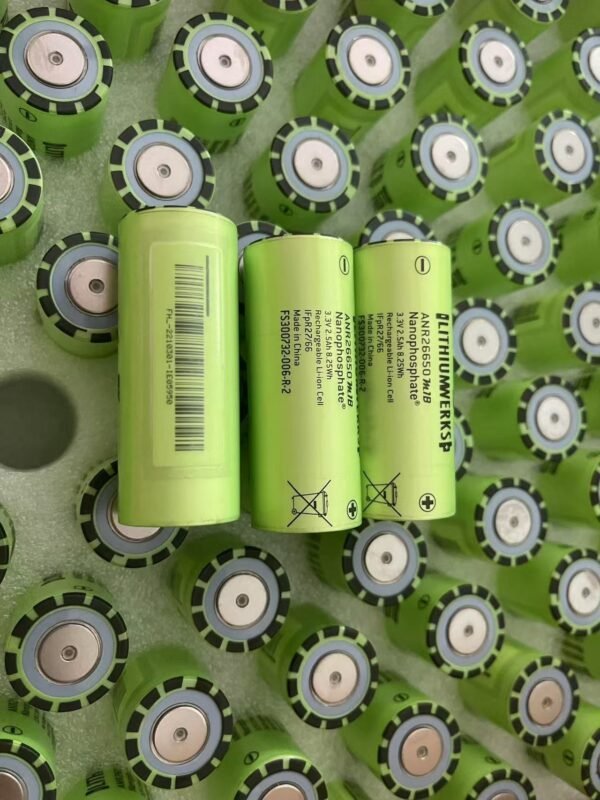

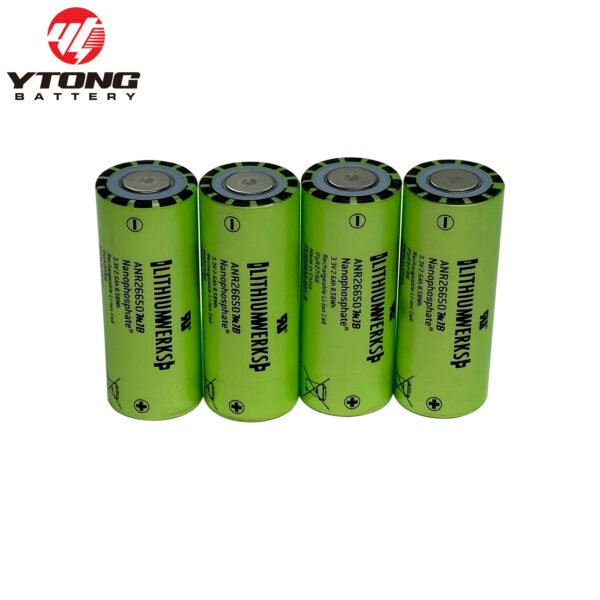

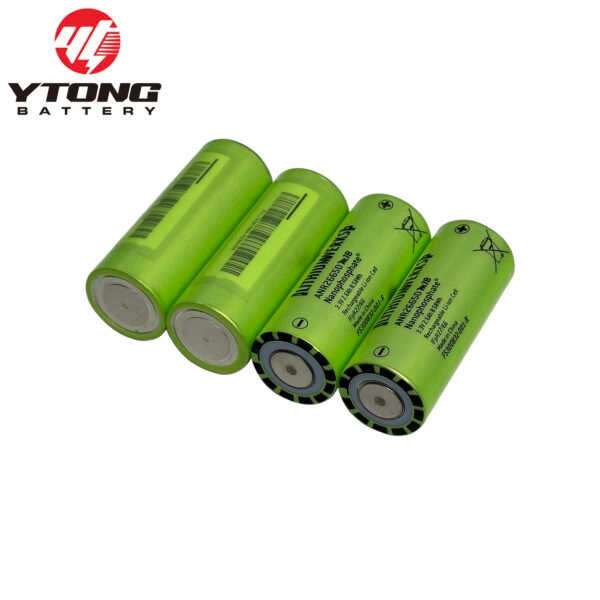

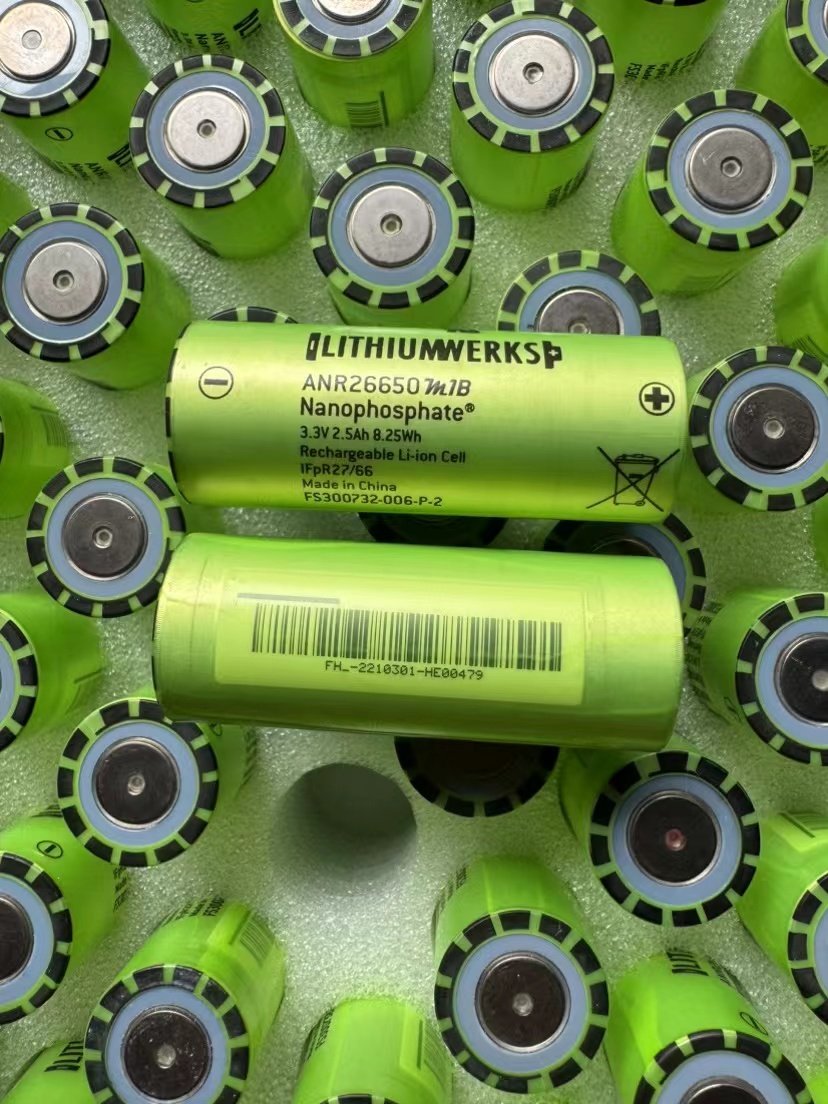

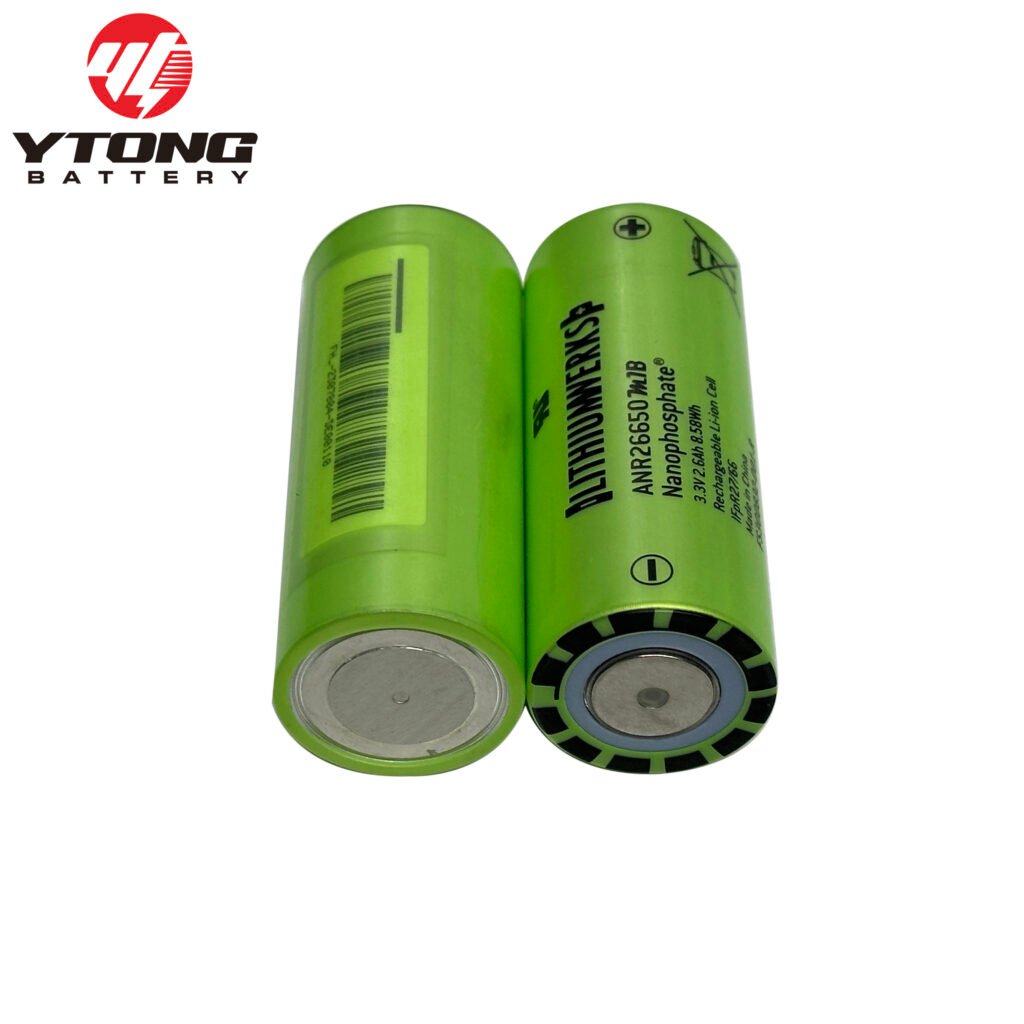

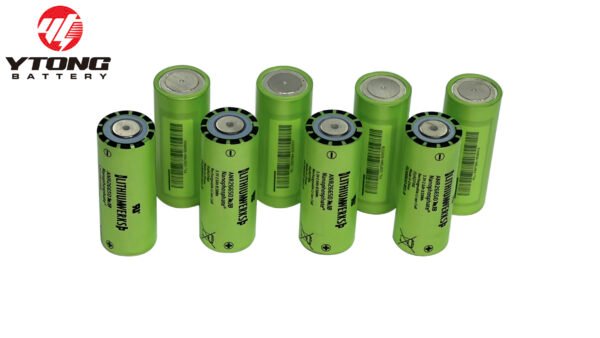

3.2V 2.5Ah LFP Cell Cell Specification
|
Battery Name |

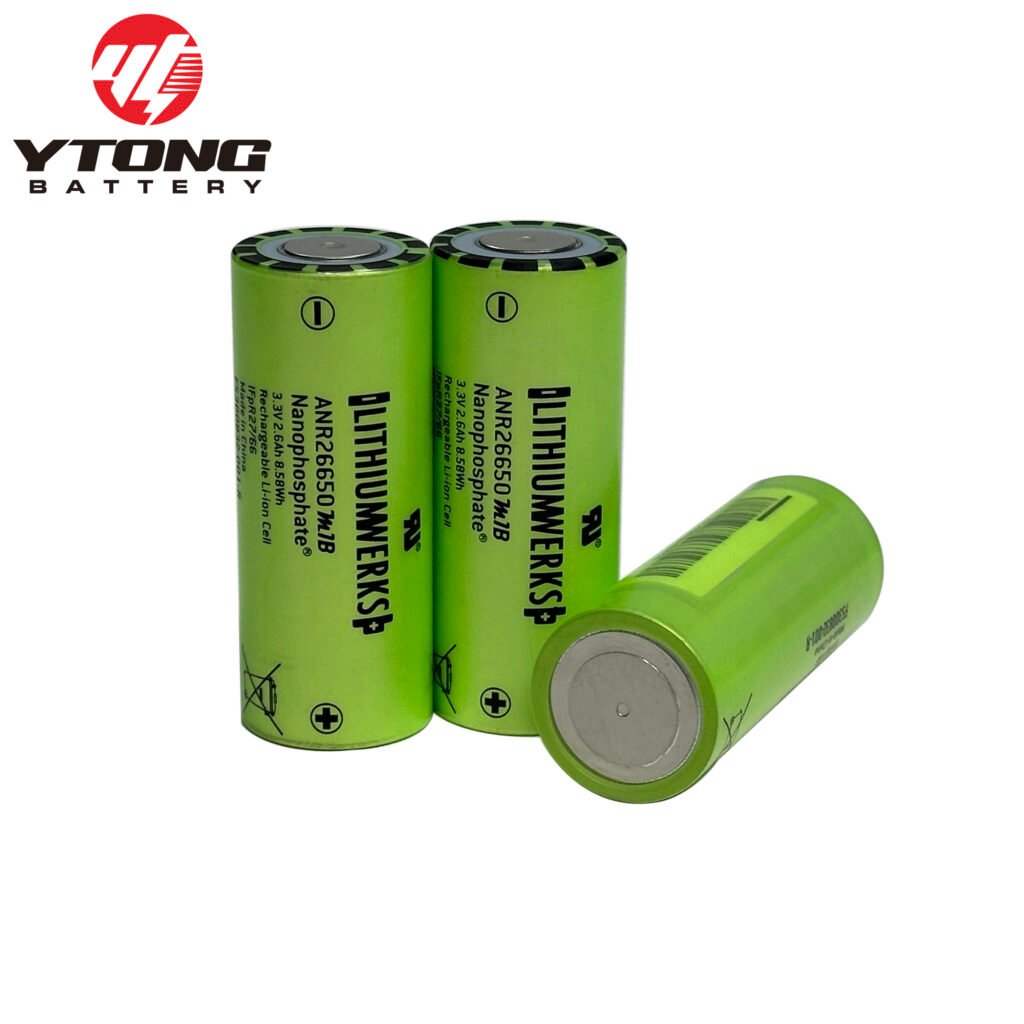

A123 26650 |
Standard |
3.3V |
|
Application |
Consumer Electronics, Power Tools, Boats, Toys, Uninterruptible Power Supplies, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Power Systems, Electric Bicycles/Scooters, Electric Forklifts, SUBMARINES, Home Appliances, electric vehicles, Drone, Robot Vacuum Cleaner |
Capacity |
2.5Ah |
|
Place of Original |
Guangdong, China |
Max Continuous Discharge Current | 50 A |
|
Operating Temperature(℃) |
-30~50 ℃ |
Max Pulse Discharge Current (10s) |
120A |
| Storage Temperature |
-40~70 ℃ |
Weight | 75.5+/- 1.5 g |
| Minimum Voltage / HPPC Pulse | 2 V / 1.6 V | Impedance (1kHz AC) |
<10mΩ |
| Max Continuous Charge Current |
10A |
Max Pulse Charge Current (10s) |
25A |
| Recommended Charge Voltage |
3.6V |
Terminate Charge @ 3.6 V | < 50 mA |
| HPPC Pulse Voltage |
3.8V |
Float Voltage |
3.5V |
|
Cycle Life |
> 2000 cycles | Shipped | @ 30% SOC by air
@ 50% SOC by sea |
|
Packaging and delivery |
Single item，
Single package size 50X15X15 cm
|
||
FAQ
1. What are the grades of battery cells? Would you test the batteries before shipment?
All batteries are brand, A grade. We will retest the battery capacity, voltage, internal resistance, etc. to ensure that there are no issues before sending it out.
2. Do you accept sample orders?
Yes, we accept sample orders and value every customer and every order.
3. Would you provide other accessories for assembling the battery pack?

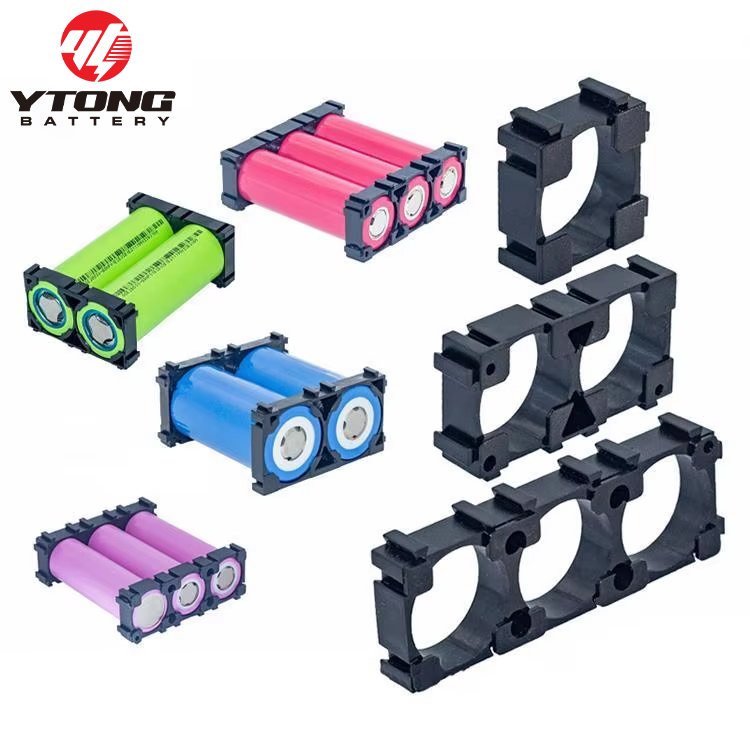

Yes, we provide other accessories required for assembling battery packs, such as BMS, balance module, cell bracket, silicone wire, insulation board, PVC, shell, etc.
4. Can you provide assembly guidance?
Sure, after you tell us about the application and requirements, we will recommend suitable batteries and provide technical guidance at any time.
5. Do you have the ability to provide semi-finished products?
We are a leading lithium battery factory in China with over 10 years of experience, with multiple production bases. We are able to supply battery cells, semi-finished modules, and final battery pack solutions according to different customer requirements.
6. How long is the warranty period for the battery?
The warranty period for battery cells is 12 months, and we also provide paid extended warranty services.
7.How can I do if I need more help with the order?
You can chat our sales online(Messenger/WeChat/WhatsApp) or send email to us. we will respond to you ASAP.
